Ocean Star 51.2 – 5 cab

STANDARD EQUIPMENT – PROVISIONAL SPECIFICATIONS

Charter Version

• Mast (SPARCRAFT) 2-spreader deck step type with in-mast roller furling system • Genoa (FACNOR) Roller furling system • Lead fin keel – bulb: 4,400 kg

Engine – Power

• YANMAR Turbo Diesel – 100 HP • Engine instruments, throttle, switches panel board, fuel tank indicators in helmsman seat • Dark Blue hull standard • Teak on cockpit sole, cockpit and helm seating, cockpit locker covers and floor, to bathing and sunbathing platforms • Winches self tailing (2 x 58, 3 x4 6) ANDERSEN • Double Pressure boom-vang  (SPARCRAFT) • Main sail and genoa (ELVSTROM) • Main sail and genoa tracks (GOIOT) • Toe rail from aluminum with 6 Fairleads (GOIOT) • 2 x Mast organizer (2 x 4 sheaves) (SPARCRAFT) • 2 x Double size genoa foot block (LEWMAR) • 4 x Automatic double stopper (LEWMAR) • Navigation lights (AQUA SIGNAL) • Electric windlass 1500 W (QUEEK) with fuse 100 A on the electric panel • Forward Windlass Remote Control • Pushpit & pulpit (S/S) D30 • 12 x Stanchion S/S (inc. boarding gates both sides) • Life lines S/S D5 (white vinyl coated with tension adjusters) • 6 x Aluminum mooring cleat • Mechanical Twin wheel steering system with emergency tiller (GOIOT) • Portholes and hatches (GOIOT) • 2 x Compass 135 mm (PLASTIMO) • VHF (RAYMARINE) DSC GMDSS approved • Big accessible (through hatch) stowage locker stern-to • Transom door Plexiglas with safety lock • S/S grab rails in front of the helms and seats • Wooden boarding ladder (passerelle) • 2 x Shell ventilator for the engine room – One of them connected to the Blower • Sound insulation coating to the engine room • 2 x Fwd symmetrical cabins with: One double bed, one single bunk above double, drawer beneath double bed, lockers and halogen lights • 2 x Aft symmetrical cabins with: One double bed, stowage beneath double bed, lockers, shelf along hull, halogen lights, large engine access panel • 1 x Bow cabin with: One double bed, upper above starboard bed locker, entrance hatch from the deck, stowage space only beneath bed • 4 x WC compartments each with: marine toilet with manual pump (ITT), electric shower drain pump (ITT), washbasin with hot/cold water mixer tap, locker and mirror • Bulkheads hand fixed with laminate to hull & deck

Interiors

The standard interiors use a marine ply covered with synthetic veneer. This is available in Teak, Maple or Cherry finish and complemented with solid wood capping and trim. The cabin sole is finished using a similar material having the same advantages of low maintenance and resistance to fire and water • Saloon seats with fixed table for 8 persons • Dedicated chart table with shelves, locker, electric panel with switches, water tank & battery and holding tank indicators

4 x Batteries

(3 x 140Ah and 1 x 65Ah) • 1 x Electric refrigerator 80 lt with keel cooler system • Gas cooker with two burners and oven (ENO) • Hot water system 50 lt operated from the engine or electrically (220 V) • S/S water and fuel tanks • 1 x Pressure water pump (PARMAX) 14.2 lt/min  • 2 x Electric bilge pumps with float operated switch • 1 x Manual bilge pump (HENDERSON or ITT) • Sea-water foot pump in galley • 1 x S/S folding bathing ladder stern-to

EXTRA EQUIPMENT

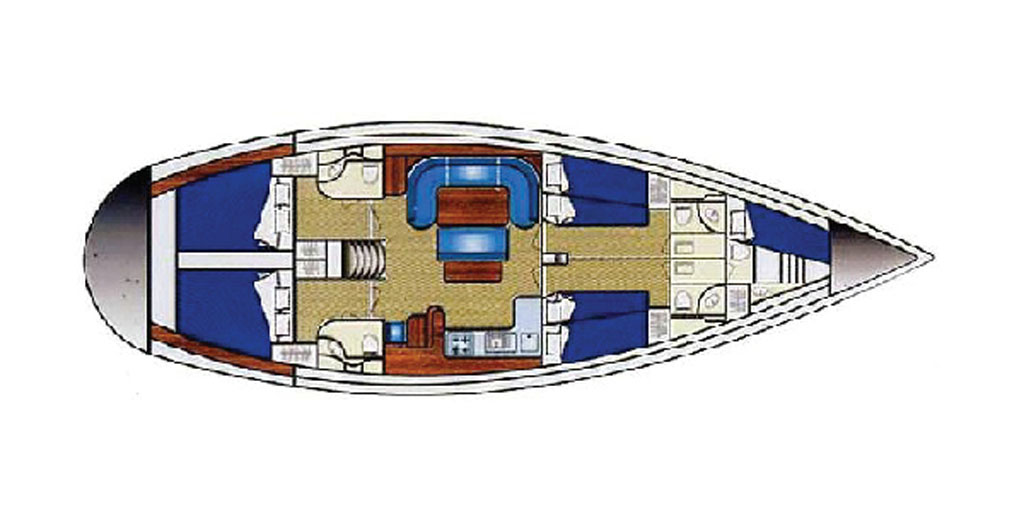

CHARTER VERSION: 2 FW CAB 2 AFT CAB 1 BOW CAB

Engineering, Mechanical and Electrical Equipment

• Generator 6KW (PANDA) Opt • Bow Thruster 9 kgf Std • Air Conditioning 22,000 BTU (Heat/Cold) independent for each cabin Opt • Sailor 1000 water maker (140 lt/hr) N/A • Battery Charger 12V/220V  Std • 220V sockets inside cabins • Refrigeration unit fitted to cockpit table

Hull, Deck and Cockpit

• Dark Blue Hull Std • Other Optional (Simple White only) colors Hull Standard N/A • Bimini top Std • Teak on deck sides Std • Full teak decking N/A • Fold away deck spray hood Std • Deck shower with hot and cold mixer tap Std • Deck washing pump 220V N.A • Cockpit cushions Opt • 2 cockpit port lights Std • Helm windlass remote control Std • Dinghy davits N/A • S/S Boarding Ladder Std • 2 x air ventilator (VETUS) with S/S grab rail protections Std • 12V waterproof socket in transom area Std • Outdoor motor bracket on transom Opt • Polyester fixed cockpit table with ice-box, S/S grab rail and light Std • 8 x Fenders • 4 x Mooring lines Std.

Rigging, Sails Winches and Tracks

• FACNOR furling forestay with twin luff groove system Std • SPARCRAFT mast with in-mast roller furling Std • Mainsail electric winch (starboard side) Opt • Spinnaker pole on mast with bell and slider Std • Upgraded Winches self tailing (2 x 64, 3 x 48) (LEWMAR or HARKEN) Opt • Set of Extra Sails= Storm jib &/or Spinnaker N/A • Radar reflector Std • Shroud protectors Opt

Systems & Galley & Saloon and Cabins

• Fresh water pump (DUAL MAX 28.5 lt/min I.T.T) Std • Electric toilet (in all heads) N/A • Holding tank (in board aft head) Std • Electric Macerator pump (in same head) Std • Three way valves (in same head) Std • Microwave oven N/A • Ice maker N/A • 2nd Refrigerator upper opening Std • Interior entrance to skipper’s cabin Std • Upper berth in forward cabins Std

Navigation, Communication and Entertainment

• RAYMARINE VHF / DSC radio Std • Electronic instruments (RAYMARIN E ST60) Log, Depth, Wind (Analog direction & Speed) Auto pilot RAYMARINE 400/S3/6001, G.P.S. Plotter • RAYCHART 425 & Radio CD Player with 2 sets of loudspeakers in cockpit and saloon Std • Radar RAYMARINE 24 N.M. SL 70 Opt • Stainless Steal pole mount for radar scanner Opt • Flat Screen Television on Saloon &/or Master Cabin Opt

Safety Equipment

• Anchor (DELTA TYPE) 25 kg with 85m chain D10mm Std • Tricolor light with all round white fitted at masthead Std

Rest Additional Equipment & Requests

• Professional Charter Equipment for Greek Territory Std • Insurance cover for Professional Charter Boat Std

Std = Standard Equipment
Opt = Optional Equipment, not all boats / some boats
N/A = Not Available
